 Intelligent System for Comprehensive Excavation Face

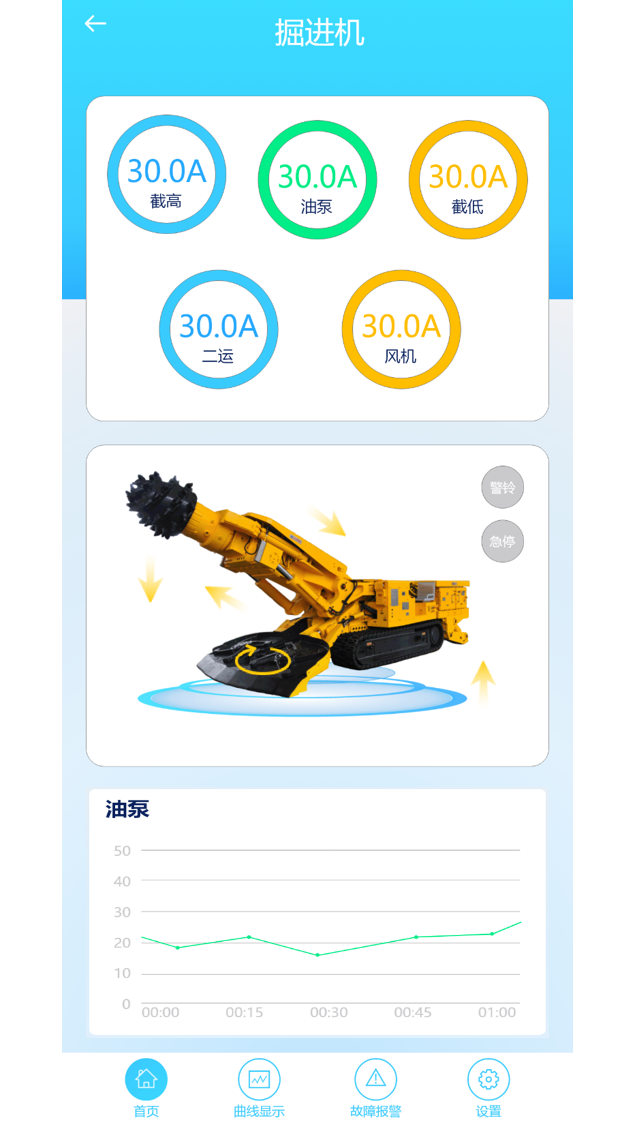

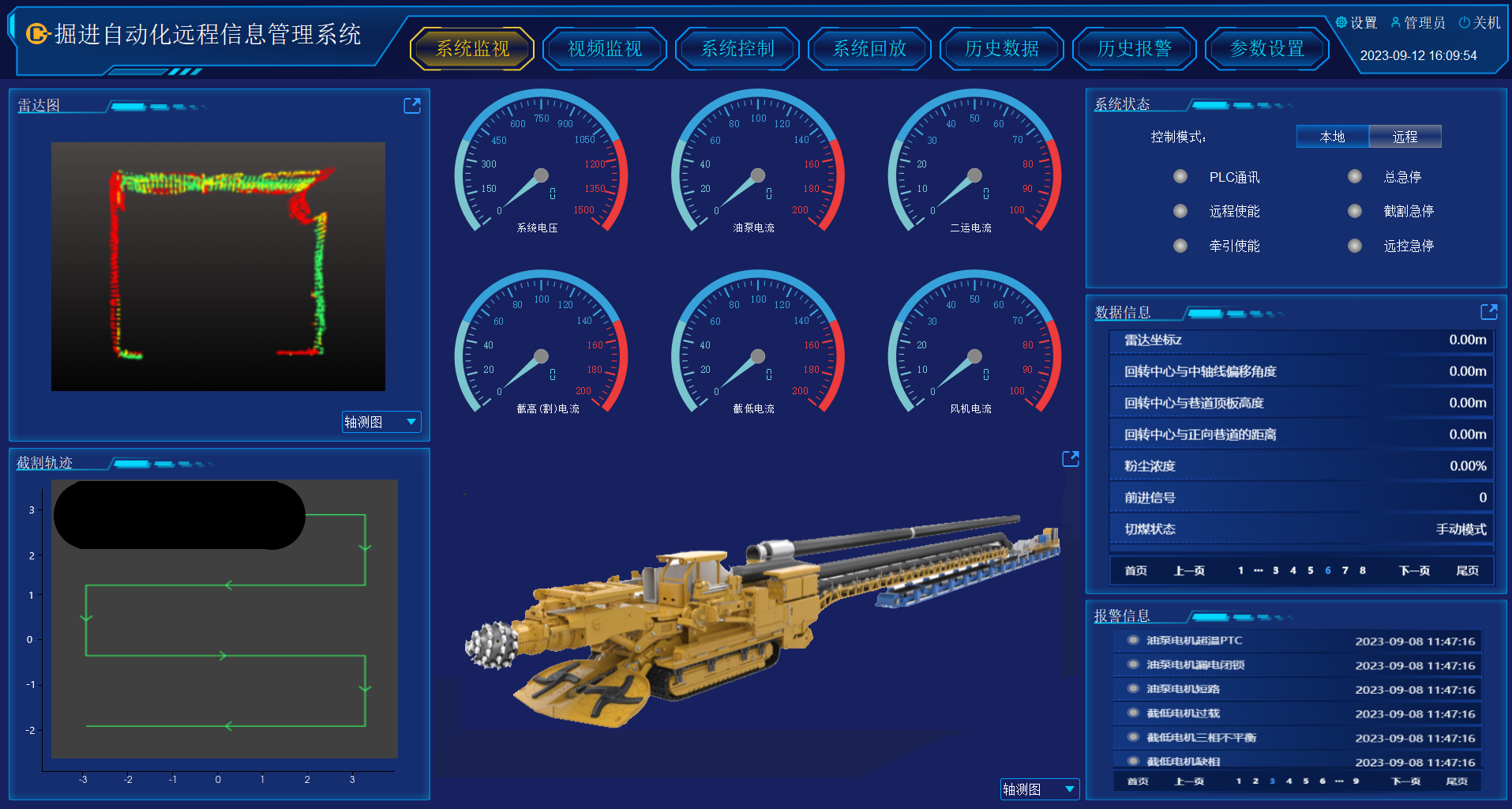

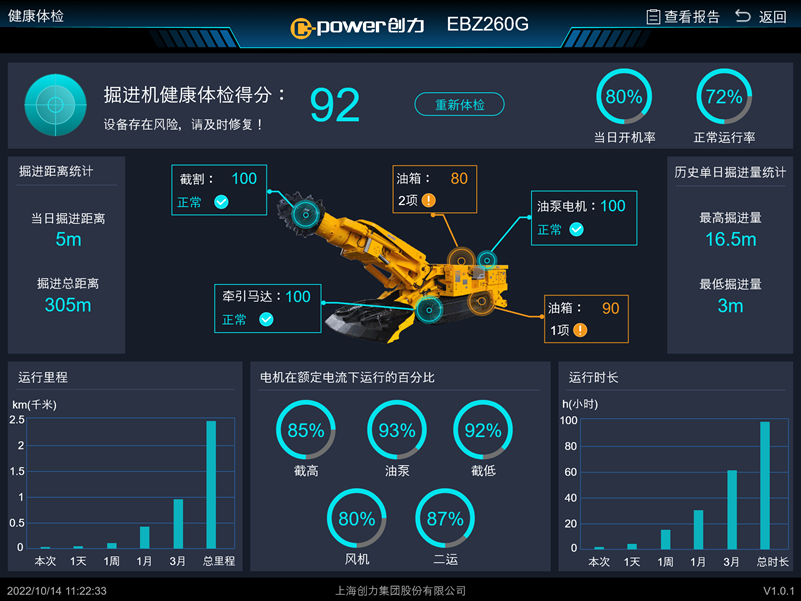

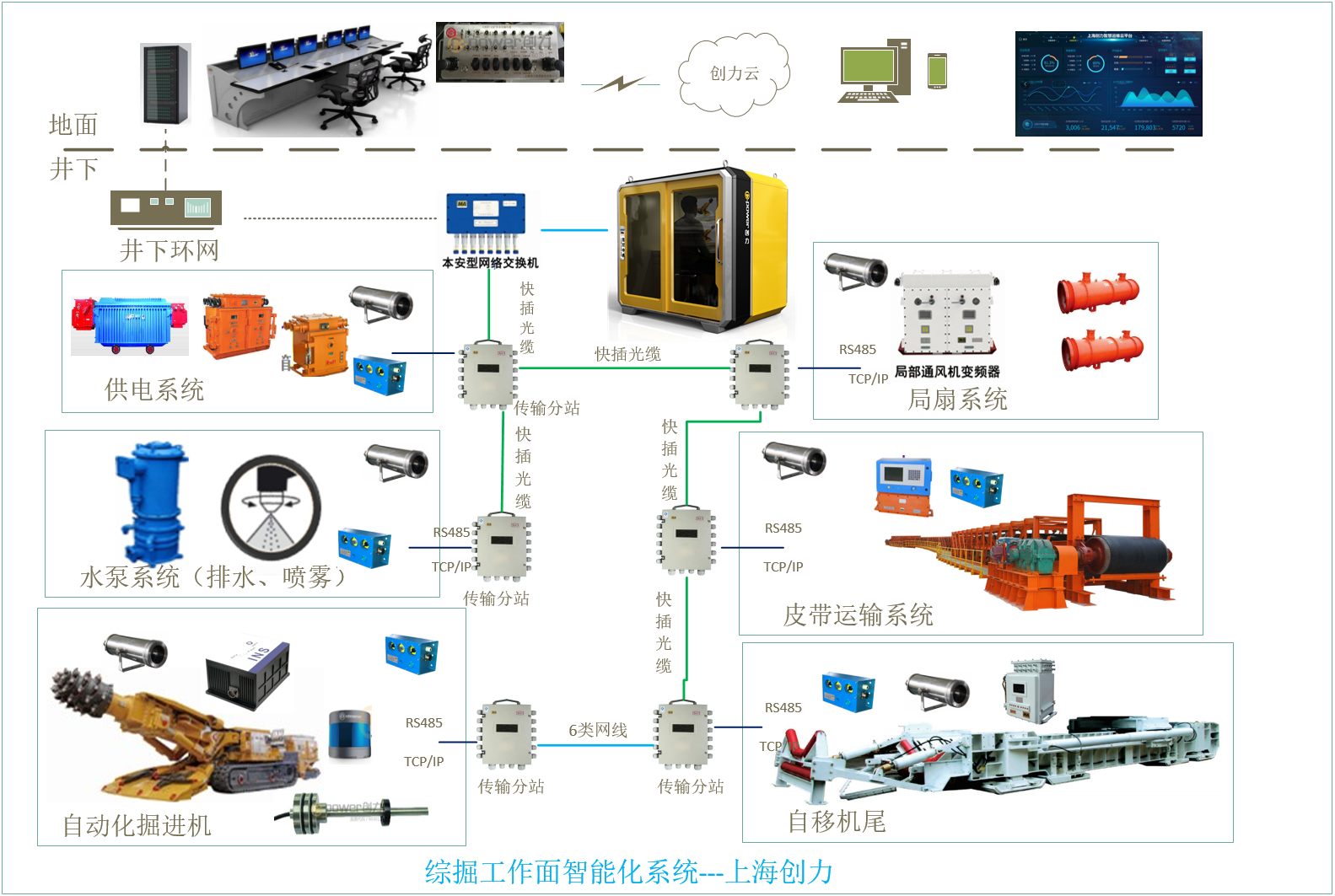

The intelligent system of comprehensive excavation working face includes an intelligent monitoring system of roadheader, an intelligent linkage system of working face equipment, an underground centralized control center, the ground monitoring center, and a cloud-based operation and maintenance management system. Equipped with a visual-inertial navigation system, radar detection system, sensor monitoring system, data transmission system, etc. on the comprehensive excavator, in conjunction with the data transmission system of other equipment on the working face, to achieve intelligent monitoring, data exchange, linkage control, and “one-click start-stop” of the comprehensive excavator, mobiles belt tail, belt conveyor, water pump system, power supply system, ventilation, and dust removal system, etc. at the remote centralized control center. Underground data can be transmitted to the surface through the underground ring network or 5G network, realizing remote monitoring; it can connect to the internet to upload data to the cloud, implementing device data monitoring function on mobiles devices like office and mobiles phones side.
